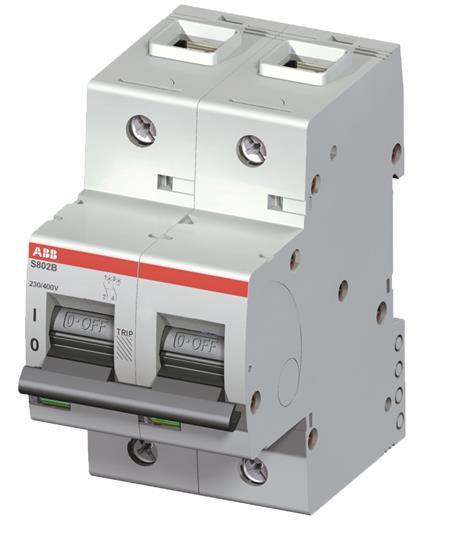

  • The S802B-D80 is a 2-pole High Performance Circuit breaker with D-Dharacteristic

S802B-D80 High Performance MCB, 80amps 16kA 2 pole MCB. D Curve

$163.00
SKU:
S802B-D80
Availability:
ex-stock same day delivery for orders before 11am
Minimum Purchase:
1 unit(s)
Quantity:

Product Description

The S802B-D80 is a 2-pole High Performance Circuit breaker with D-Dharacteristic, with cage terminal and a rated current of 80 A. It is a current limiting device with a maximum breaking capacity of 16kA at 230/400V. It can be used for voltages up to 230/400V. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S802B-D80 complies with IEC/EN 60947-2 and EN 60898-1 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S802B-D80 more comfortable. Due to the fast arc extinction of S802B-D80 your application will be secured.



Dimensions

  • Product Net Width:
    54 mm
  • Product Net Depth:
    82.5 mm
  • Product Net Height:
    95 mm
  • Product Net Weight:
    0.49 kg

Technical

  • Standards:
    IEC/EN 60947-2
    IEC/EN 60898-1
  • Number of Poles:
    2
  • Tripping Characteristic:
    D
  • Rated Current (In):
    80 A
  • Rated Operational Voltage:
    230/400 V AC
  • Power Loss:
    at Rated Operating Conditions per Pole 6.4 W
  • Rated Insulation Voltage (Ui):
    440 V AC
  • Rated Frequency (f):
    50 / 60 Hz
  • Rated Short-Circuit Capacity (Icn):
    (230 / 400 V AC) 10 kA
  • Rated Ultimate Short-Circuit Breaking Capacity (Icu):
    (230 / 400 V AC) 16 kA
    (150 V DC) 10 kA
  • Rated Service Short-Circuit Breaking Capacity (Ics):
    (230 / 400 V AC) 10 kA
  • Overvoltage Category:
    III
  • Pollution Degree:
    3
  • Rated Impulse Withstand Voltage (Uimp):
    4 kV
  • Housing Material:
    Insulation group I, RAL 7035
  • Contact Position Indication:
    ON / OFF / TRIP
  • Degree of Protection:
    acc. to IEC 60529 IP20
  • Remarks:
    Connection from top and bottom
    Connecting with CU only
    IP40 in enclosure with cover
    Cage terminal with captIIIe screw
  • Terminal Type:
    Screw Terminals
  • Connecting Capacity:
    Flexible 1 ... 50 mm²
    Stranded 1 ... 70 mm²
  • Tightening Torque:
    3.5 N·m
  • Recommended Screw Driver:
    Pozidriv 2
  • Mounting on DIN Rail:
    TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
    TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
  • Mounting Position:
    Any

Environmental

  • Ambient Air Temperature:
    Operation -25 ... +60 °C
    Storage -40 ... +70 °C
  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Certificates and Declarations (Document Number)

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    105 mm
  • Package Level 1 Length:
    60 mm
  • Package Level 1 Height:
    99 mm
  • Package Level 1 Gross Weight:
    510 g
  • Package Level 1 EAN:
    7612271416119
  • Package Level 2 Units:
    1 piece
  • Package Level 2 Height:
    0.92 mm
  • Package Level 2 Gross Weight:
    0.51 kg
